Single Large Transformer Terminal (XY267-1P) 10 mm2

Description

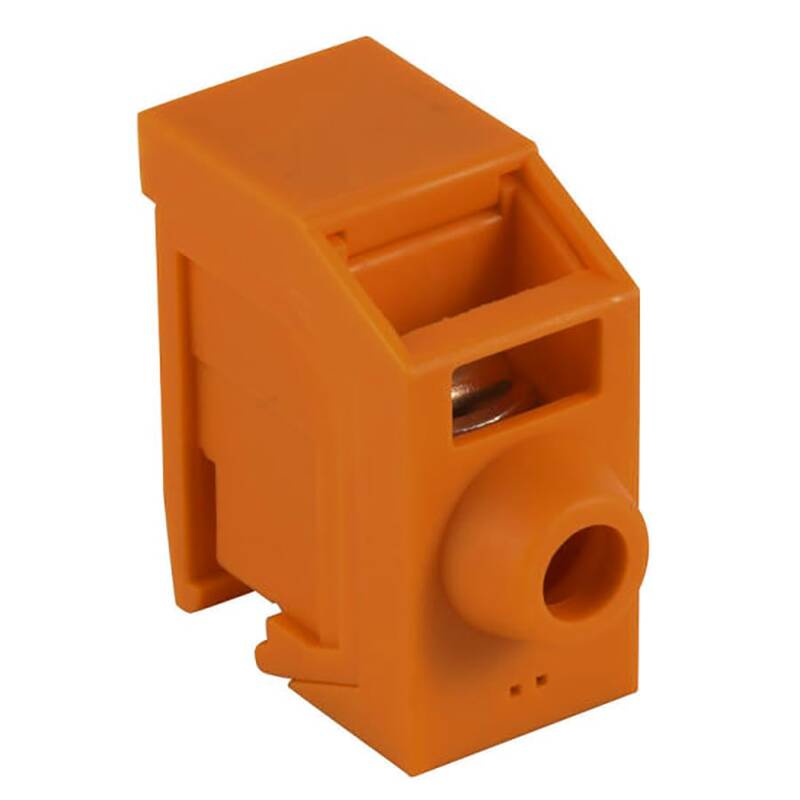

Single Large Transformer Terminal (XY267-1) 10 mm²

The Single Large Transformer Terminal (XY267-1) 10 mm2 is a specially designed connection component for high-voltage transformers and other large electrical devices. With its robust structure and durability, it ensures the safe and efficient operation of high-voltage equipment.

This transformer terminal is made of high-quality and durable materials. The copper alloy terminals provide high conductivity and high-temperature resistance, ensuring a safe and long-lasting connection. Additionally, stainless steel screws and nuts offer excellent corrosion resistance.

The XY267 Large Transformer Terminal is designed for easy installation and use. Its ergonomic design allows for quick and effortless mounting and removal. Moreover, the adjustable terminal height accommodates different wire thicknesses, making it an ideal choice for electricians and maintenance teams.

Inspection Standards

  • GBT 2828.1-2012

Usage

  • Wire Stripping Length: 8-10mm

Soldering

  • Wave Soldering: 260℃ / 5s

  • Hand Soldering: 350℃ / 10s
