KNOTT Wet Multi-disc Brakes KNOTT Wet Multi-disc Brakes Oil-cooled multi disc brakes made by Knott function according to the ball ramp principle and are available as multi and mono servo versions. Actuation can take place using the pressure wedge, tension wedge or pull tab principle. Various friction material qualities, the number of discs, as well as differing ramp and [...]

KNOTT-Electromagnetic Brakes The KNOTT range of electromagnetic brakes Electromagnetic brakes can be designed not only as positive but also as negative brakes. Actuation of the brake occurs by the supply of current or by interrupting the current supply. These brakes are used predominantly in applications with electric drives, such as conveyors, industrial trucks or electric vehicles, but also [...]

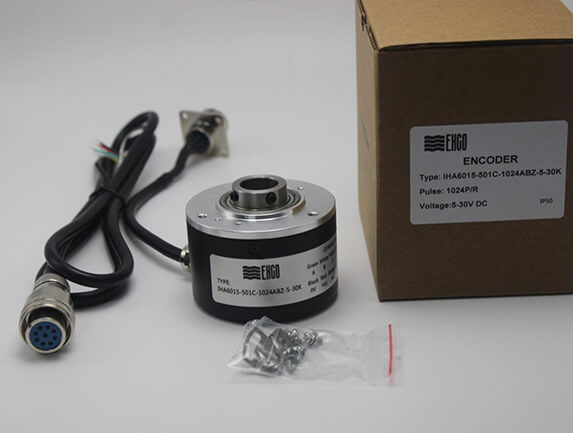

Rotary Encoder AçıklamaSpesifikasyonAçıklama What is an Encoder? An encoder is a sensor that converts mechanical or electrical motion into numerical data, providing information about position and speed. Typically mounted on a shaft or spindle, an encoder measures the rotational movement and converts it into numerical signals, which are then sent back to control systems. In [...]

Speed Sensor-Encoder Exco manufactures three kinds of speed transducers developed for applications in AC motors: Hole 17 mm close                                Hole 17 mm open Hole 12 mm close                              [...]

Speed Sensor-Encoder 1. Main Parameter Parameter Parameter Values Parameter Parameter Values Pulse number 32 Maximum speed 10000rpm Output signal NPN Working voltage 4.5--24V DC A.B phase difference 90±20° Load current Max25mA Output low level <0.5V Signal duty cycle 50%±5% Response frequency 0.2--20kHz Output high level >VCC-0.5V Protective registration IP67 Working temperatuer -30℃~120℃ Connection method 4 line [...]

Speed Sensor-Encoder Speed Sensor-Encoder - Ø14mm  AB two pulses (phase difference 90); Optional line sequence+BA -,+BA -,+- BA,+- AB Size selection: L=35mm, 39.5mm, 45mm, 50mm 1. Main Parameter Parameter Parameter Values Parameter Parameter Values Pulse number 48 or 64 teeth Working voltage 4.5--24V DC Output signal NPN Load current Max25mA A.B phase difference 90±20° Signal duty cycle [...]

Speed Sensor-Encoder 1.  Main Parameter Parameter Parameter Values Parameter Parameter Values Working voltage 4--24V DC Output signal NPN Load current Max25mA Signal duty cycle 50%±5% A.B phase difference 90±20° Output high level >VCC-0.5V Output low level <0.5V Response frequency 1--20kHz Signal rise time <10us Signal drop time <1us Sensing distance 0-2mm  2. Connector Wiring Instruction [...]

Reluctance Resolver Reluctance resolver is an electromagnetic sensor, which is composed of stator and rotor. When the AC magnetic field generated by the excitation winding is periodically stable, the rotor rotation leads to the change of the air gap magnetic field between the stator and rotor, and the inductance fed back to the secondary winding [...]

miControl-Servo Drives-E Series THE E-SERIES - THE ALLROUNDER： 1.  mcDSA-E2x   The mcDSA-E2x family offers performance without compromise. This family includes our most powerful controllers thanks to a robust aluminium bracket enables excellent thermal performance allowing a maximum output current of 160 A. For battery-driven applications up to 60 volts, as well as powerful drives, [...]

Temperature Sensor Temperature-Resistance  Form(-40℃-180℃） Sequence  Number Experimental  Temper ature(℃) MIN (Ω) TYP (Ω) MAX (Ω) 1 -40 332 359 386 2 -20 394 424 455 3 0 464 498 532 4 20 544 581 618 5 40 632 672 713 6 60 729 773 817 7 80 835 882 929 8 100 950 1000 1050 9 120 [...]

miControl -Brake Choppers Brake Choppers - mcER-Lx Our brake choppers redirect voltage spikes, which can occur in the intermediate circuit during braking, to a ballast resistor. This protects your power supply and other components in your supply circuit from damage. Device name Max. braking current Cont. Braking current Braking resistor Dout mcER-L40 - - min. 1 [...]

miControl-Servo Drives-F Series THE F-SERIES - THE PREMIUM CLASS 1.  mcDSA-F1x The mcDSA-F15 and mcDSA-F17 drive controllers provide the optimum solution for extremely complex technical requirements. They are the product novelties in our F1x-family. The drive controllers are designed with peak current up to 225 A and continuous current up to 85 A. With a [...]

miControl-Servo Drives-B Series THE B-SERIES - THE INDUSTRY STANDARD  1. mcDSA-B4x   The mcDSA-E4x and mcDSA-B4x families are excellent all-rounders. These families offer a maximum output current up to 50 A in combination with easy DIN rail mounting. All variants of the mcDSA-E4x and mcDSA-B4x are addtionally available in high current variants (HC). Device name Motor [...]

KNOTT-Drum Brakes 1.Cam brakes Robust cam brakes offer the advantage that they are operated not only mechanically by use of external cylinders, but also hydraulically or pneumatically. The combination of a service and a parking brake is thus made possible. Cam brakes are mainly used as parking brakes. But they may also be found in [...]

KNOTT-Disc Brakes KNOTT basic systems for disc brakes These systems are highly controllable, have constant coefficients and are not affected by either temperature or speed fading. This is also true where our disc brakes are concerned. Whether we select from our standard range or offer a custom solution, it will always meet your needs. Here [...]
